TFR 1502L Speakers

Category:

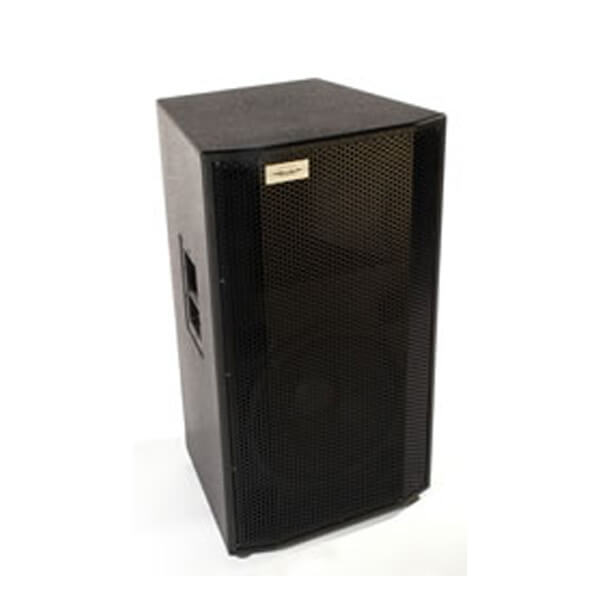

The TFR1502L is our premium full range cabinet ideally suited to nightclub applications which require a large high powered unit.

The cabinet incorporates a 800w RMS 15” bass mid drivers and a 2” exit compression driver specifically designed to provide a high powered full range frequency for nightclub environments. The TFR1502L is ideal for permanent installations in venues which require a high powered cabinet for DJ based, live music reproduction and can also be used for a small portable PA as well as a standalone unit.

Request a Price

Contact our friendly expert team today:

Enquire Now Call: 0161 477 9300

  • Main Application
    Mid high unit when coupled with RF SS & BS bass/ sub units for portable nightclub reinforcement system
  • Complementary Speakers
    Can be used as standalone units or reinforced with RF15/215, BS15/18 & SS1000 bass cabinets
  • Dimensions
    W: 51cm. H: 89cm. D: 46cm. Weight: 46kg
  • Power
    800w RMS. 1600w Peak
  • Drivers
    1 x 15” & 1 x 2” exit compression driver
  • Mounting
    Can be flown and stacked
  • Quick Specs
    TFR1502L is an extended version of the 1502S and is a 2 way full range system which features a 15” bass driver and a 2” exit compression driver and has a frequency response of 50Hz to 18KHz
  • Model
    TFR 1502L
  • Type
    Trapezoidal Vented High Powered Two-way Passive
  • Frequency Response
    From 35Hz – 18Khz
  • Rated Power
    800w RMS – 1600w Peak
  • Sensitivity
    98db
  • Maximum SPL
    123db
  • Dispersion
    90 degree (H) 60 degree (V)
  • Nominal
    8 Ohms
  • Bass
    15” Driver
  • Mid
  • High Frequency
    2” Exit Commpression Driver
  • Crossover
    1 KHz Passive
  • Enclosure
    Multi Laminated Birch Ply
  • Finish
    Textured Black Paint
  • Grille
    Black Perforated Steel
  • Connector
    2 x Neutrik NL4
  • Fittings
    1 x Top Hat Fitting 2 x Recessed Bar Handles 9X M10 Suspension Points
  • Dimensions
    (W) 51 cm x (H) 89 cm x (D) 46 cm
  • Weight
    46 Kg

Each connector panel has two Neutrik Speakon connectors wired in parallel. The second connector allows use of a short link lead to power a secondary parallel loudspeaker. The connectors are wired as follows:

  • 2 Core cable
  • Pin 1 Positive
  • Pin 1 Negative

When connecting Blacka Group sound reinforcement to an amplifier it is recommended that the return resistance of the cable used is less than one tenth of the normal impedance of the system or systems in parallel the chart below gives an indication of the maximum possible cable runs for conductor cross sectional areas.

  • Conductor CSA
    Maximum Cable Lengths
  • 4 OHMS
    8 OHMS
    10 OHMS
  • 1.0 mm
    11 m
    22 m
    44 m
  • 1.5 mm
    17 m
    34 m
    68 m
  • 2.0 mm
    22 m
    44 m
    88 m
  • 2.5 mm
    29 m
    58 m
    116 m
  • 4.0 mm
    44 m
    88 m
    176 m
  • 6.0 mm
    66 m
    132 m
    264 m

The Blacka Group TFR1502L is designed to be used with professional power amplifiers capable of producing a minimum spec of 800w – 1600w power output into 4 ohms.

Care should be taken to avoid amplifier clipping, it is important to understand that a low power amplifier driven into clipping is more likely to damage a loud speaker than a higher power amplifier used within its ratings. Primarily because music signals have a high peak to average crest factor. When an amplifier is severely overdriven its output waveform is clipped resulting in squared off peaks and thus reducing the crest factor. In extreme cases, the waveform can approach that of a square wave. An amplifier is normally capable of producing far more power under these conditions than its undistorted rated power output. The use of very high power amplifiers with outputs greater than those recommended is discouraged.

Care should be taken to avoid switch on surges, which can result in momentary power peaks in excess of specified ratings. When powering up a sound system it is important to switch on the amplifiers after the mixer and control electronics have stabilised. When powering down the system, reverse the sequence and switch off the amplifiers first

The TFR1502L units can be used with a wide array of Blacka Group speakers. Typical configurations are listed below

Large Bar / Nightclub : RF15 – RF215 – BS15 – BS18 – SS1000 Bass Cabinets

Portable PA: Standalone – RF15 – RF215 – BS15 – BS18 – SS1000 Bass Cabinets.

It is important that loudspeaker systems are used in a safe manner. Please take some time to review the following points concerning the use of Blacka Acoustics loudspeakers.

Professional loudspeakers are capable of producing extremely high sound levels and should be used with care. Hearing loss is cumulative and can result from levels above 90db if exposed for a long period. never stand close to loudspeakers driven at high level.

  1. TRIPOD MOUNTING
    The TFR1502L can be tripod mounted and incorporates a pole mounting socket to facilitate mounting on tripod stands. When using stands the following precautions are advised:
    1. 1.1 Ensure that the stand will support the weight of the speaker by checking the stand manufacturers rating.

1.2 Make sure that the stand is placed on a level surface and that its legs are fully extended.

1.3 Do not place more that one speaker on each stand.

1.4 Run cables so that they do not present a trip hazard which could pull the speaker over.

1.5 When used outdoors in the wind it may be necessary to add some weight to the base of the stand.

1.6 When using a pole mount with a sub bass system observe similar precautions.

  1. RIGGING AND SUSPENSION

    WARNING
    Suspending the system should only be done by qualified personnel following safe rigging practices. Secure fixings to the buildings structure are vital. Seek help from architects, structural engineers or other specialists if in any doubt.

    The TFR1502L loudspeaker enclosures are designed for installation applications and can be suspended singularly by means of the threaded inserts provided within the cabinet. The TFR1502L enclosures are fitted internally with steel corner reinforcement brackets to ensure that each cabinet is strong enough to be hung from its top. Never suspend one enclosure from another to form an array or cluster using these fittings.

    The common practice of using commercially available eye bolts for suspension should only be undertaken with great caution. Eye bolts are strongest along the thread axis. Angling the enclosure will result in an angled pull and it is important to use bolts that are safe in these circumstances. Only forged shoulder eye bolts should be considered and it is important that the thread length is at least 40mm. A flat washer should be inserted between the eye bolt and the enclosure. Formed eye bolts i.e. those which are formed from steel rod bent into an eye should be avoided.
